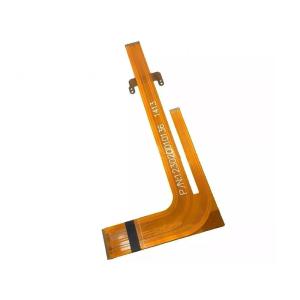

Flex original pioneer para avh 3500 avh p3550 dvd flex fpc cable
Peculiarity of FPC:
1. Small size, high density integration
2. Save space
3. Simplify layout procedure and simplify wiring.
4. Save human resources cost
5. with good flexibility and folded easily and freely.
We Supply Pioneer/H-buster/Positron DVD Flat Cable.
DVD H BUSTER HBD-9500 - 9550 - 9600 CED 750-755 ORIGINAL
FPC Cable For DVD AVH-P 5000 5050 5080 5100 5150 5180 DVD
FLAT DVD PIONEER AVH-P 5200 - 5250 -5280 - 5300 - 5350 - 5380 - 5400 -5450 -5480 - 6300 -6350 - 6380
Flat Cable Flex FPC Para Avh 3550 3580 Avh3580 dvd 123020010136 1413 1316 1409
FPC Cable H BUSTER HBD - 9510 9540 9560 9650
Flat Cable Flex FPC Para Pioneer Avh 7580
Flat Cable Flex FPC Para CNQ 8806
Flat Cable Flex FPC Para CNQ 7214
| OEM/ODM Services: | | | |
| Layers | 1-22 layers | Min. line width | 2mil |
| Max.board size (single&doule sided) | 700*1200mm | Min.annular ring width: vias | 3mil |
| Surface finish | HAL(with Pb free),plated Ni/Au, Immersion silver,Imm Ni/Au,Imm Sn, hard gold,OSP,ect | Min.board thickness(multilayer) | 4layers:0.4mm; 6layers:0.6mm; 8layers:1mm; 10layers:1.2mm |
| Board materials | FR-4; high Tg; high CTI; halogen free; high frequency(rogers,taconic, PTFE,nelcon, ISOLA,polyclad 370 HR); thick copper | Plating thickness (Technique: Immersion Ni/Au) | Plating type: Imm Ni, Min./Max thickness:100/150U'' Plating type: Imm Au, Min./Max thickness:2/4U'' |
| Impedance control | ± 10% | Distance between line to board edge | Outline: 0.2mm V-CUT: 0.4mm |
| Base copper thickness(Inner and outer layer) | Min. thickness:1/3 OZ Max.thickness:6OZ | Min.hole size(board thickness ≥2mm) | Aspect ratio≤16 |
| Finished copper thickness | Outer layers: Min.thickness 1 OZ, Max.thickness 10 OZ Inner layers: Min.thickness 0.5OZ, Max.thickness 6 OZ | Max.board thickness(single&doule sided) | 6mm |
Company Infomation
Cablelinker designs and manufactures flexible printed circuits (FPC). We design single, double, and multi layers , Rigid, flexible, Flex-Rigid printed circuit boards,and PCB assembly.
